APK 7.5kw Electric Motor QSP Submersible Vertical Pump
APK 7.5kw Electric Motor QSP Submersible Vertical Pump Introduction:
QSP jet pump submersible pump is a product developed on the basis of QS pump, which is used in water conservancy projects such as gardens, artificial lakes, urban squares, entertainment places, etc.
APK 7.5kw Electric Motor QSP Submersible Vertical Pump Feature:
1. The motor is connected with the water pump and jet pump facilities and works underwater at the same time.
2. Cast iron and stainless steel can improve the corrosion resistance of the pump.
3. Leakage protection measures shall be taken with constant potential grounding device.
4. On the basis of the original pump, Qin pump can be started frequently according to the requirements of submersible pump of jet pump, which is suitable for the use of music fountain.
5. The pump adopts stainless steel filter screen shield and cables for three-phase four wire spray pump.
6. The submersible pump of high-power jet pump can be used horizontally.
7. The water immersion motor has a long service life, and the automatic water filling submersible pump can be selected.
APK 7.5kw Electric Motor QSP Submersible Vertical Pump Ordering Instructions:
Please provide the following detailed data: ① Product name and model of the fountain submersible pump; ② Diameter of the fountain submersible pump (mm); ③ Lift of the fountain submersible pump (m); ④ Flow of the fountain submersible pump; ⑤ Motor power of the fountain submersible pump (KW); ⑥ Rotating speed of fountain submersible pump (r/min); ⑦ Voltage of fountain submersible pump [V]; ⑧ Suction head of the fountain submersible pump (m); ⑨ Whether the fountain submersible pump is equipped with accessories, so that we can select the right type for you.
Parameters of APK 7.5kw Electric Motor QSP Submersible Vertical Pump:
| Model | Capacity (m3/h) | Head (m) | Power (kw) |
| QSP65-25-7.5 | 65 | 25 | 7.5 |
| QSP80-24-7.5 | 80 | 24 | 7.5 |
| QSP100-15-7.5 | 100 | 15 | 7.5 |
| QSP150-10-7.5 | 150 | 10 | 7.5 |
| QSP40-40/2-7.5 | 40 | 40 | 7.5 |
| QSP80-22/2-7.5 | 80 | 22 | 7.5 |
| QSP30-50/3-7.5 | 30 | 50 | 7.5 |
| QSP30-54/3-7.5 | 30 | 54 | 7.5 |
| QSP25-56/3-7.5 | 25 | 56 | 7.5 |
| QSP50-36/3-7.5 | 50 | 36 | 7.5 |
| QSP20-75/3-7.5 | 20 | 75 | 7.5 |
| QSP25-60/3-7.5 | 25 | 60 | 7.5 |
Other types parameters of APK 7.5kw Electric Motor QSP Submersible Vertical Pump:
| Model | Capacity (m3/h) | Head (m) | Power (kw) |
| QSP15-26-2.2 | 15 | 26 | 2.2 |
| QSP20-20-2.2 | 20 | 20 | 2.2 |
| QSP25-17-2.2 | 25 | 17 | 2.2 |
| QSP65-7-2.2 | 65 | 7 | 2.2 |
| QSP100-5-2.2 | 100 | 5 | 2.2 |
| QSP40-16-3 | 40 | 16 | 3 |
| QSP40-18-3 | 40 | 18 | 3 |
| QSP45-16-3 | 45 | 16 | 3 |
| QSP25-25-3 | 25 | 25 | 3 |
| QSP32-20-3 | 32 | 20 | 3 |
| QSP50-13-3 | 50 | 13 | 3 |
| QSP65-10-3 | 65 | 10 | 3 |
| QSP22-28-3 | 22 | 28 | 3 |
| QSP50-13-3 | 50 | 13 | 3 |
| QSP100-7-3 | 100 | 7 | 3 |
| QSP15-34/2-3 | 15 | 34 | 3 |
| QSP20-30/2-3 | 20 | 30 | 3 |
| QSP40-21-4 | 40 | 21 | 4 |
| QSP65-13-4 | 65 | 13 | 4 |
| QSP80-12-4 | 80 | 12 | 4 |
| QSP100-9-4 | 100 | 9 | 4 |
| QSP25-34/2-4 | 25 | 34 | 4 |
| QSP24-34/2-4 | 24 | 34 | 4 |
| QSP15-52/3-4 | 15 | 52 | 4 |
| QSP20-40/2-4 | 20 | 40 | 4 |
| QSP20-36/2-4 | 20 | 36 | 4 |
| QSP30-26/2-4 | 30 | 26 | 4 |
| QSP40-28-5.5 | 40 | 28 | 5.5 |
| QSP45-25-5.5 | 45 | 25 | 5.5 |
| QSP60-20-5.5 | 60 | 20 | 5.5 |
| QSP65-18-5.5 | 65 | 18 | 5.5 |
| QSP40-30/2-5.5 | 40 | 30 | 5.5 |
| QSP30-36/2-5.5 | 30 | 36 | 5.5 |
| QSP30-38/2-5.5 | 30 | 38 | 5.5 |
| QSP30-40/2-5.5 | 30 | 40 | 5.5 |
| QSP20-50/3-5.5 | 20 | 50 | 5.5 |
| QSP15-65/4-5.5 | 15 | 65 | 5.5 |
| QSP120-10-5.5 | 120 | 10 | 5.5 |
| QSP100-12-5.5 | 100 | 12 | 5.5 |
| QSP220-5-5.5 | 220 | 5 | 5.5 |
| QSP65-25-7.5 | 65 | 25 | 7.5 |
| QSP80-24-7.5 | 80 | 24 | 7.5 |
| QSP100-15-7.5 | 100 | 15 | 7.5 |
| QSP150-10-7.5 | 150 | 10 | 7.5 |
| QSP40-40/2-7.5 | 40 | 40 | 7.5 |
| QSP80-22/2-7.5 | 80 | 22 | 7.5 |
| QSP30-50/3-7.5 | 30 | 50 | 7.5 |
| QSP30-54/3-7.5 | 30 | 54 | 7.5 |
| QSP25-56/3-7.5 | 25 | 56 | 7.5 |
| QSP50-36/3-7.5 | 50 | 36 | 7.5 |
| QSP20-75/3-7.5 | 20 | 75 | 7.5 |
| QSP25-60/3-7.5 | 25 | 60 | 7.5 |
| QSP24-34/2-4 | 24 | 34 | 4 |
| QSP15-52/3-4 | 15 | 52 | 4 |
| QSP20-40/2-4 | 20 | 40 | 4 |
| QSP20-36/2-4 | 20 | 36 | 4 |
| QSP30-26/2-4 | 30 | 26 | 4 |
| QSP40-28-5.5 | 40 | 28 | 5.5 |
| QSP45-25-5.5 | 45 | 25 | 5.5 |
| QSP60-20-5.5 | 60 | 20 | 5.5 |
| QSP65-18-5.5 | 65 | 18 | 5.5 |
| QSP40-30/2-5.5 | 40 | 30 | 5.5 |
| QSP30-36/2-5.5 | 30 | 36 | 5.5 |
| QSP30-38/2-5.5 | 30 | 38 | 5.5 |
| QSP30-40/2-5.5 | 30 | 40 | 5.5 |
| QSP20-50/3-5.5 | 20 | 50 | 5.5 |
| QSP15-65/4-5.5 | 15 | 65 | 5.5 |
| QSP120-10-5.5 | 120 | 10 | 5.5 |
| QSP100-12-5.5 | 100 | 12 | 5.5 |
| QSP220-5-5.5 | 220 | 5 | 5.5 |
Other types parameters of APK 7.5kw Electric Motor QSP Submersible Vertical Pump:
Our factory provides various types of submersible pumps, and each pump is guaranteed to be of low price, high quality and service life of about ten years. If you have any questions about the water pump, you can contact us. Our email is enquiry02@apkpump.com, our Whatsapp is +86 17537187726.
Product Tags:
|
|

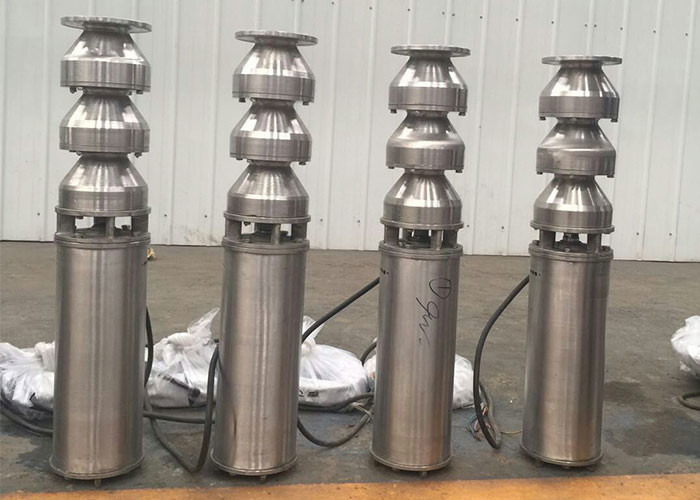

QSP Submersible Vertical Pump APK 7.5kw Electric Motor Images
|
