480v 100psi Stainless Steel 316 Ocean Marine Deep Well Submersible Pump

UAE 75 Hp 80 Mtrs 100psi 41.7lps 480v 60hz AC 3 Phase Marine Water Submersible Pump

We received an inquiry from The United Arab Emirates customers, who inquiry a marine submersible pump, with a highly reliable 2 stage marine deep well pump 3 phase 480V AC 60Hz 100psi submersible pump, deliver to Nigeria. The marine water submersible pump flow 41.7lps head 80 Mtrs 75 HP 55 kw Pump outlet diameter 10” outlet 6” BSP type, applied for ocean sea water lifting in boat.

The customers have a professional submersible motor and submersible cable specifications.

Submersible motor details including:

1. Model: MTSF 200 CI

2. Type: single cable type, water filled, rewind able

3. Kw: 55kw

4. Volts: 380-415v/3PH/50hz/DOL 460v 3Ph 50hz

5. Ambient temperature: 30 degrees celsius

6. Motor outlet diameter: 8”

According to UAE customer required specification, we suggest 250QJH140-90-55KW, please kindly check the formal offer and data sheet for ref.
Kindly note:
1. The pump we quoted with SS316 material.
2. The offer includes 5 meter submersible power cable proper for sea water. If more required, please inform us to revise the offer accordingly.

SS316L A4-70 screws and nuts for stainless steel 316 submersible pump:

10 inch marine submersible pump types:

(Notice: flow rate, head meters, voltage and materials, all could be customized)

Marine water submersible pump installation tools:

1. Set of sling chains;
2. Tripod with a vertical of height over 4m
3. Two pendant cord (steel wire rope) bearing weight in excess of 1 ton;
4. Two sets of clamps and splints;
5. Spanner, hammer, screwdriver, electrician tools and instrument

How to get quickly exactly price?

We need to confirm more details with you as below, then we will suggest you the most suitable model and prepare formal offer:
1. Is there any limits on the pump diameter?
2. Is this pump for replacing the old one or for new project? If for replacing, may i know the motor power of the original pump?
It would be better if you can share some pictures with us, includes the nameplate of the pump.
3. What's the flow rate or head meters of the pump?

What will you do when you running water submersible pump?

1. Checking the power cable, no broken

2. Turning the impeller by wrench, confirm it can be turned smoothly

3. Checking the drain hole at the bottom of the water pump. If it is loose, tighten it

4. Fulling the motor with clean drinking water. We will share video if you don’t know how to do. The submersible water pump will be burnt if submersible motor not filled fully water.

5. Tighten the screws of the water injection hole and exhaust hole on the upper part of the motor

6. After installing the pump into the well, observe the flow rate and current. If the current is common and the flow is small, it may be reversed. Adjust the steering. If the current is still high and the flow is small, there may be water leakage from the pipeline connection. Check the pipeline.

7. We have video if you don't know how to do. E-mail or Message to Whatsapp, please.

Why choose us?

1. Specialized production Manufacturer for Submersible Pump

2. Focus on technological innovation, Over Industry leading level

3. Good experience at Domestic and oversea market

4. Carefully paint for Good appearance

5. Years of International service standards, Engineer one-to-one service

6. CE; ISO; ABS

100psi Deep Well Submersible Pump

SS316 Deep Well Submersible Pump

75hp Deep Well Submersible Pump

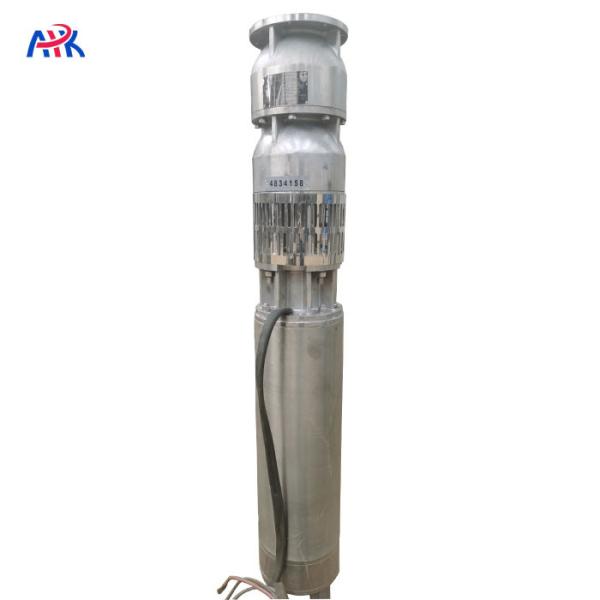

480v 100psi Stainless Steel 316 Ocean Marine Deep Well Submersible Pump Images
