SS304 Submersible Pump Well Vertical Seawater Clean Water Deep Sea Water Submersible Pumps
Stainless steel submersible pump main parts material:
| Pump impeller | ss304, ss316, ss316L, duplex stainless, ss904L |
| Pump bowl | ss304, ss316, ss316L, duplex stainless, ss904L |
| Pump shaft | 45# steel, 2Cr13, Dulpex |
| Pump shaft sleeve | 45# steel, 2Cr13 |
| Bearing | Rubber |
| Submersible motor | ss304, ss316, ss316L, duplex stainless, ss904L |
Deep vertical multistage electric stainless steel submersible water pump could be submerged in sea depth 120m max. Our stainless steel submersible pump material is casting stainless steel, longer service life and stronger resisitant corrosive than stamping stainless steel. We have ss304, ss316, ss316L, duplex stainless and ss904L, anti corrosive. We have various 300m3/h submersible water pump types to choose as below, if you are interested in water submersible pumps, please contact asap.
Stainless steel submersible pump applications:
1. Ground clean water pumping
2. Irrigation farmland system
3. Sea water, shipyard, offshore, floating dock, salt water, river, lake, vessel
4. Drawing water from well or borehole
5. Pumping sea water
300m3/h stainless steel submersible pump models:
| Diameter | Model | Power | Flow | Head |
| Inch (") | QJ type | kw | hp | m3/h | m |
| 12" | 300QJ300-20/1 | 25 | 35 | 279-321 | 17-23 |
| 12" | 300QJ300-40/2 | 55 | 75 | 279-321 | 35-45 |
| 12" | 300QJ300-60/3 | 75 | 100 | 279-321 | 51-69 |
| 12" | 300QJ300-80/4 | 110 | 150 | 279-321 | 68-92 |
| 12" | 300QJ300-100/5 | 140 | 190 | 279-321 | 96-104 |
| 12" | 300QJ300-120/6 | 160 | 220 | 279-321 | 115-125 |
| 12" | 300QJ300-140/7 | 185 | 250 | 279-321 | 134-146 |
| 12" | 300QJ300-160/8 | 220 | 300 | 279-321 | 153-167 |

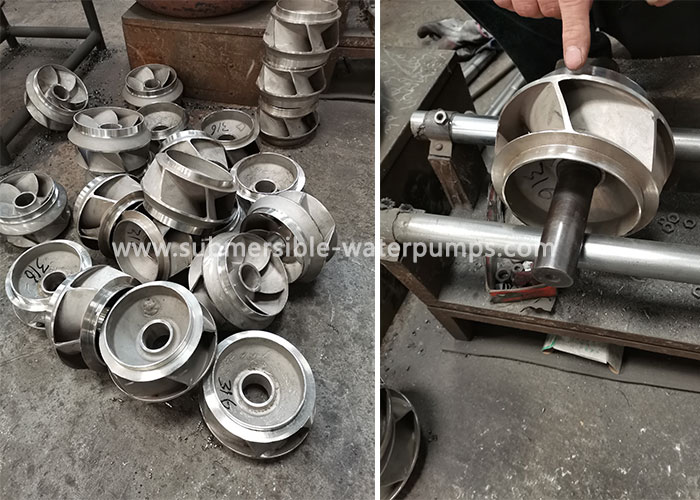

Stainless steel submersible pump impeller, with static balance testing:
Stainless steel submersible motor image:
300m3/h 60m stainless steel 316L submersible pump 100hp, with 100m cables:
Why choose us? :
1. APK is a professional ODM OEM electric submersible water pump manufacturer in China since 1996
2. Got CE, ABS and ISO certificates, 12 National Patents.
3. Focusing on submersible water pumps, used for clean water, sea water, salt water, sewage water and hot water.
Quality control of submersible water pump:
Each submersible water pump from APK, rotor dynamic balance testing, motor withstand voltage testing, submersible motor set immersion testing for 48 hours, impeller static balance testing and submersible water pump set testing center to control quality. We have established strict quality system, strict punishing and rewarding system.
